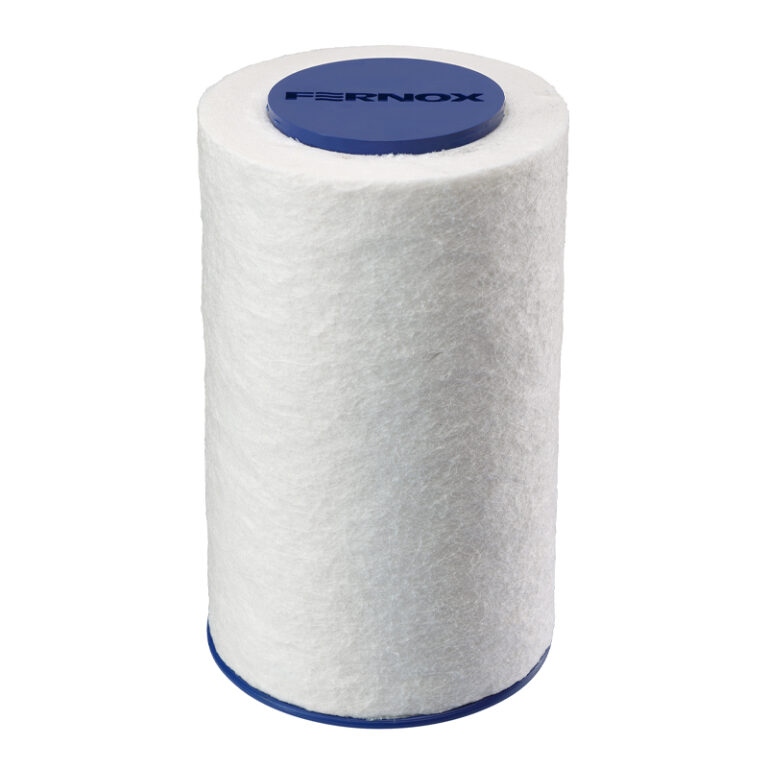

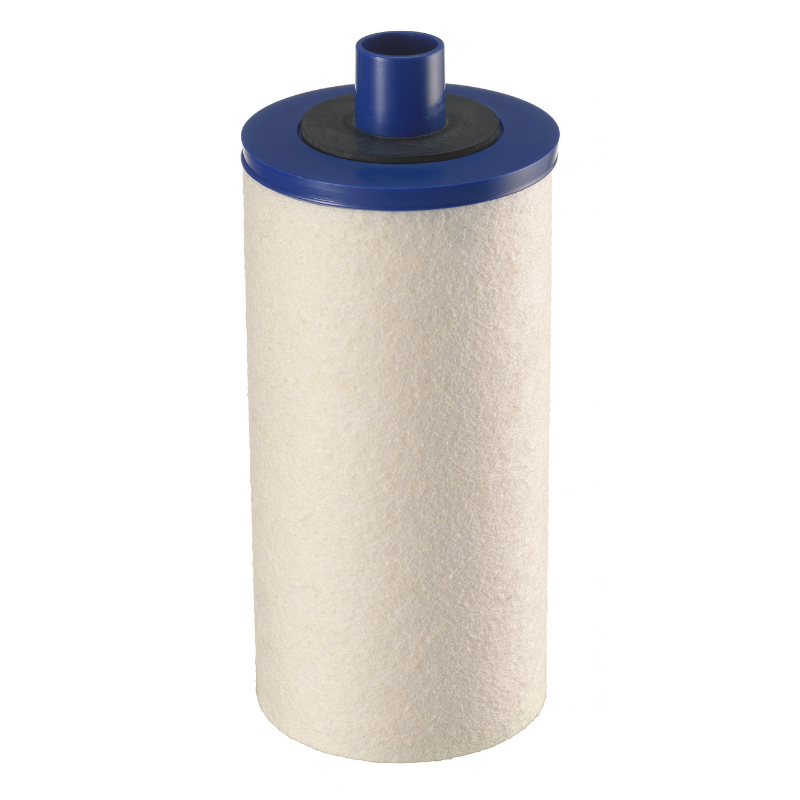

CC1 Side Stream Filter 20 Cartridge

Fernox CC1 Anti-Microbial Cartridge Filters utilise next-generation side stream filtration technology designed to restore HVAC system performance, improve energy efficiency and enhance user safety. The cartridges incorporate industry-leading anti-microbial treatment to inhibit bacterial growth on the filter surface, helping systems reach and maintain optimal operating conditions.
By combining micron-rated filtration with advanced anti-microbial protection, the cartridges support consistent debris removal, reduced biofouling and extended service life in closed-loop heating and cooling systems.
The range is available in three filtration grades:
20 µm
5 µm
0.5 µm

Available Versions

Product Code:

33006342

Micron Rating: 0.5 Micron

Product Code:

33006343

Micron Rating: 5 Micron

Product Code:

33006344

Micron Rating: 20 Micron

Physical Specification / Properties

Compatible Unit: CC1 Side Stream Filter 20
Cartridge Body: Anti-microbial polypropylene spun bonded fibre
Filtration Ratings: 0.5µm / 5µm / 20µm
Anti-Microbial Agents: Silver (Ag) and Zinc (Zn)
Filter Media Structure: Micron-scale fibre structure with optimised surface area
Debris Holding Capacity: High, supporting extended service intervals
Application: Closed-loop commercial heating and cooling systems

Volumetrics

Product Code	Micron Rating	Single Unit Barcode	Single Unit Dimensions(Height x Width x Depth)	Single Unit Weight (kg)	Outer Carton Dimensions(Height x Width x Depth)	Outer Carton Box Weight (kg)
33006343	Micron Rating: 5 Micron	5014551005303	155 x 65 x 65 mm	0.07	157 x 133 x 133 mm	0.35 kg
33006344	Micron Rating: 20 Micron	5014551005310	155 x 65 x 65 mm	0.70	157 x 133 x 133 mm	0.35 kg
33006342	Micron Rating: 0.5 Micron	5014551005297	155 x 65 x 65 mm	0.07	157 x 133 x 133 mm	0.35 kg
