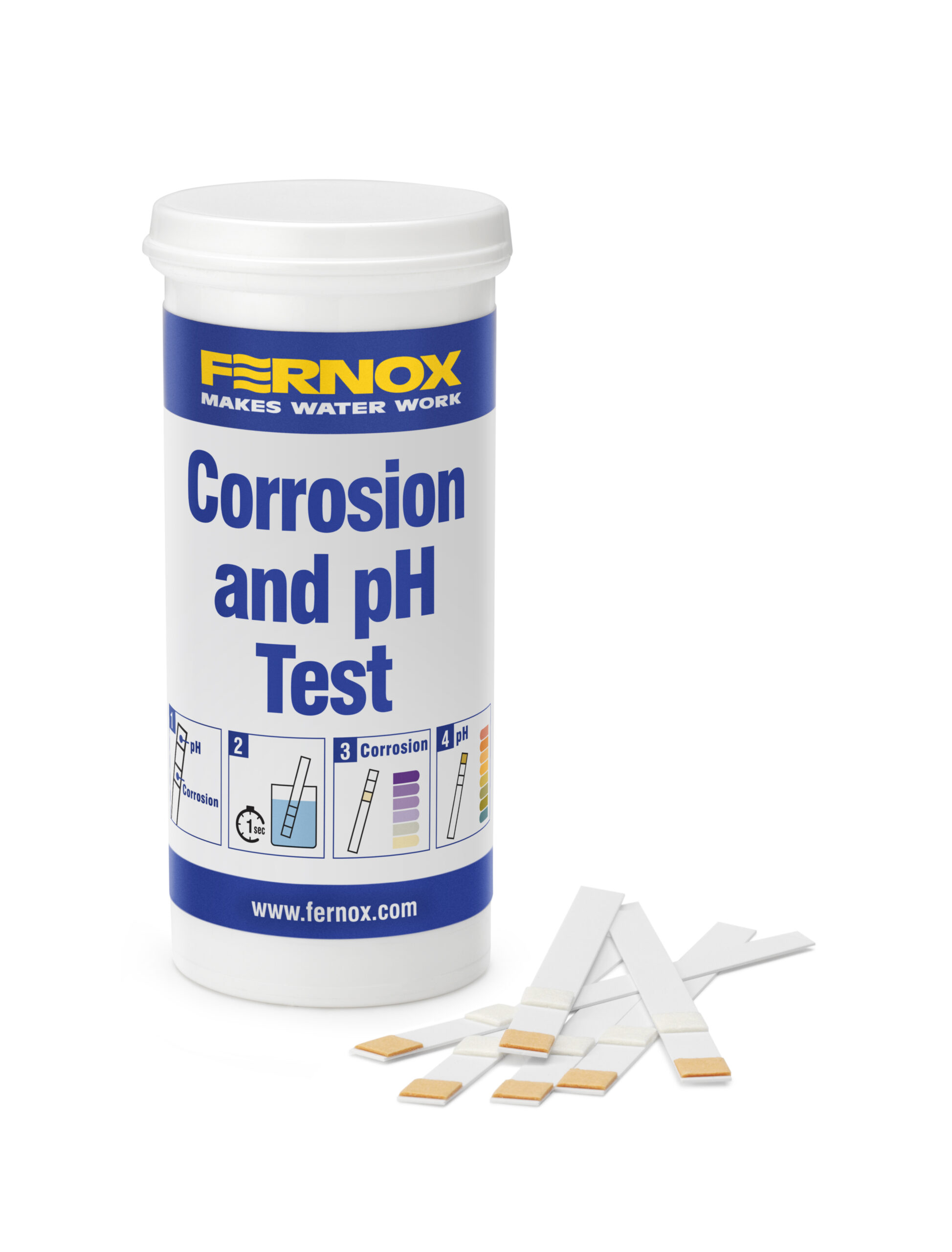

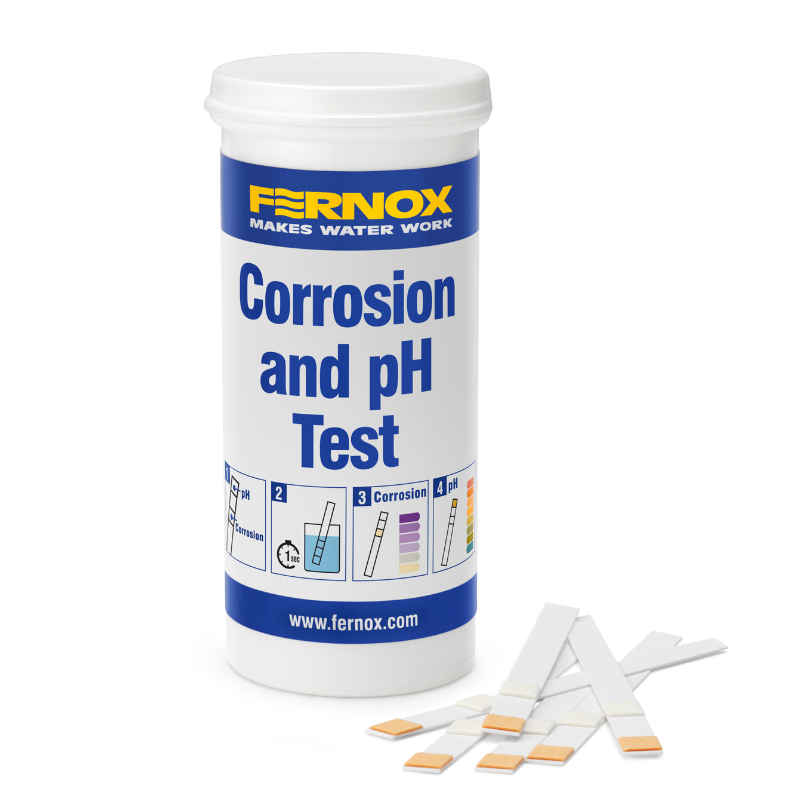

Corrosion and pH Test

Algae in feed and expansion cisterns Leathery skins or films of algae on the surface of expansion cisterns in open vented systems are caused by fungal mould growths. It occurs when the expansion cistern is not properly covered causing dust, insects and spores to be able to enter the water. Algae in feed and expansion cisterns Underfloor heating systems are also susceptible to microbial growth due to the lower temperatures at which these systems operate. Gas in the system Microbiological fermentation in a system could result in flammable gas. Methane gas, which burns with a blue flame, is most often found.Hydrogen sulphide (emitting a ‘bad egg’ smell) may also occur, and is associated with the presence of corrosive sulphate-reducing bacteria. Bacterial or yeast infestations caused by organisms entering the system from the supply water; debris in new systems or through air contact in open expansion cisterns can also occur. What should be done? To combat algae in open vented systems, empty the cistern and disinfect with Fernox AF-10 Biocide or Fernox LP Sterox. Refill the tank, adding the correct dose of AF-10 Biocide (refer to the instructions on the container)and top up the concentration levels of Protector F1. Ensure the tank is fitted with a purpose-made lid to prevent future contamination of the tank. When there is gas in a system,use Fernox AF-10 Biocide to control microbiological growths and prevent gas build-up. Where contamination is significant,several repeat doses of biocide may be required: in such situations, it may be appropriate to drain and retreat the entire system. Bacterial contamination in air and ground source heat pumps When there is bacterial contamination in air and ground source heat pumps, Fernox HPCleaner can be used. Before use, it should be diluted using no more than 600 litres ofmains water per one litre of HPCleaner (equivalent to 600 metres of 40mm pipework). The ground collector must be flushed out with fresh mains water before being filled with the diluted product.Having circulated the HP Cleaner for at least one hour, after whichit should be flushed out until thewater runs clear. Fill the ground collector with Fernox HP-5 /HP-5c or HP-15 / HP-15c depending on the level of frost protection required.

Corrosion occurs when a refined metal reverts back to its natural ore state. Corrosion in water systems takes place when two areas of metal with a different electrical charge are in contact or linked via a conductor such as water. Corrosion occurs when a refined metal reverts back to its natural ore state. Corrosion in water systems takes place when two areas of metal with a different electrical charge are in contact or linked via a conductor such as water. What should be done? An inhibitor should be added to system water to reduce the rate at which corrosion takes place. To determine the existing level of protection simply use the Fernox Protector Test Kit to measure the concentration of inhibitor within the system for an instant on-site result. Over and under-dosing with inhibitors Although manufacturers specify a recommended dose rate for their product, it is important to find out how a product performs when over or under-dosed. Anodic passivating products will require a sufficient dose to ‘coat’ the internal surfaces of the system, plus some excess to maintain this film. If the dose is below the level required to achieve sufficient protection, exposed areas of metal will continue to corrode. Over-dosing with anodic inhibitors is unlikely to have any detrimental effect. Negative impact of contaminants However, corrosion inhibitors will not be fully effective if under-dosed, but will have a partially protective effect. Negative impact of contaminants The presence of contamination by flux residues, existing corrosion sludge, residual cleaning agent, or even washing-up liquid may adversely affect the performance of an inhibitor and lead to corrosion. To make sure an inhibitor performs as effectively as possible, it is advisable to clean the system thoroughly before treating. the Fernox Water Test Kit, the Fernox F3/ F5 Cleaner Test Kit or the Total Dissolved Solids (TDS) Meter can be used to check that a system has been adequately cleaned and flushed before an inhibitor is added.
