TF1 Antifreeze Valve
The Fernox TF1 Antifreeze Valve is specifically designed to protect water-based air source Heat Pump heating systems. In cold weather

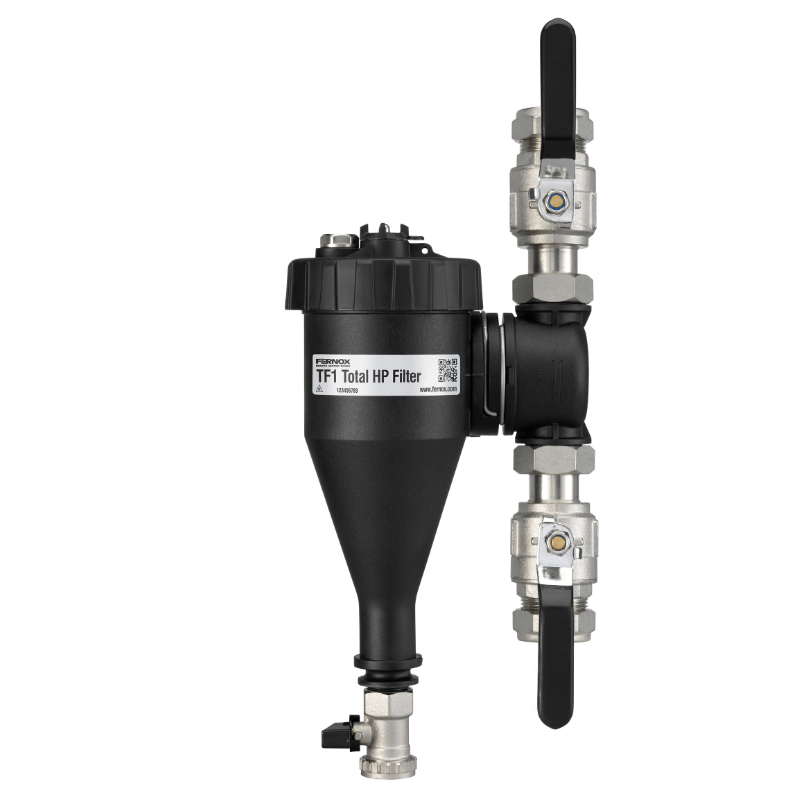

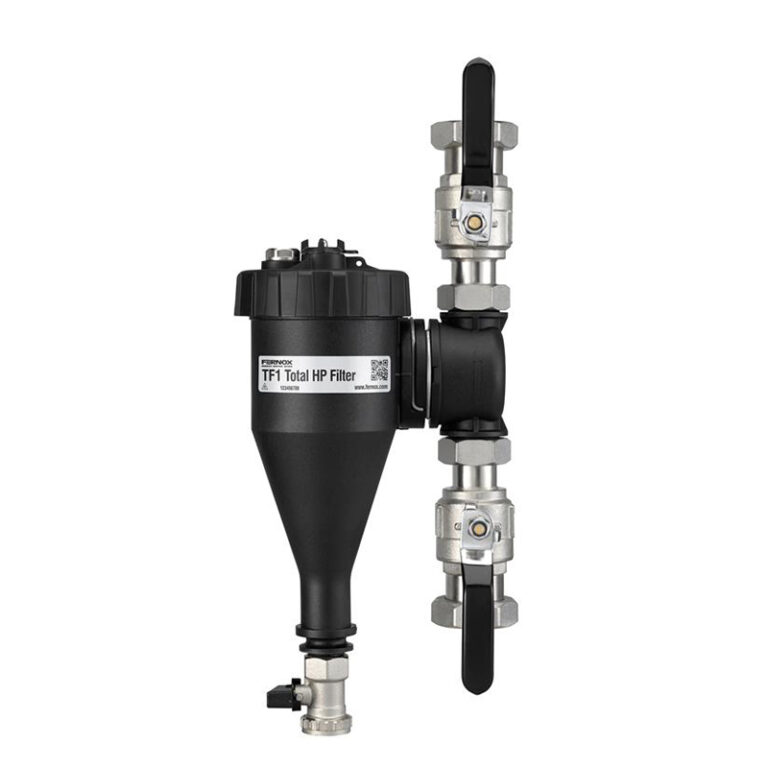

The Fernox TF1 Total HP Filter combines an integrated 400-micron mesh and powerful Neodymium magnet to capture magnetic sludge and non-magnetic debris, while maintaining the high flow rates needed for efficient, reliable heat pump performance.
It can fit onto vertical and horizontal pipework, can be cleaned in minutes, and does not restrict flow in any way.
| Product Code | Fit Type and Size | Product Data Sheet (PDF) |
|---|---|---|
| 62805 | ||
| 62804 | ||
| 62803 |
The TF1 Total HP Filter is manufactured from a high-strength, glass-reinforced polymer, offering excellent resistance to hydrolysis, strain, and abrasion. The polymer is compatible with glycols and system additives, and is ideally suited for heat pump and modern central heating systems.

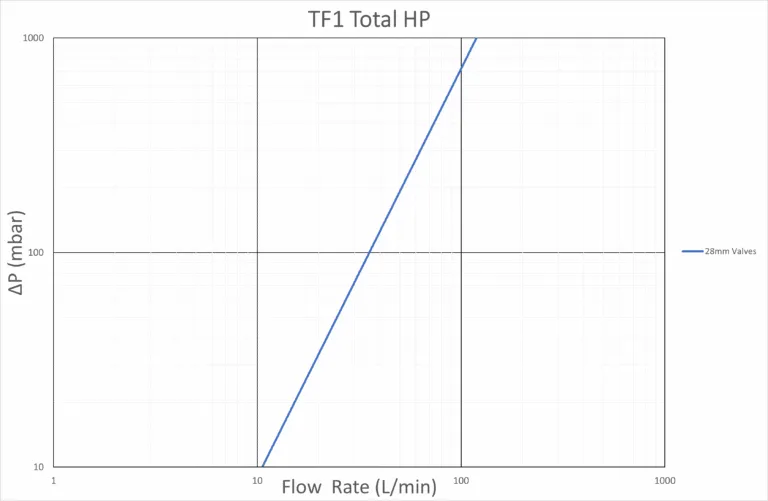

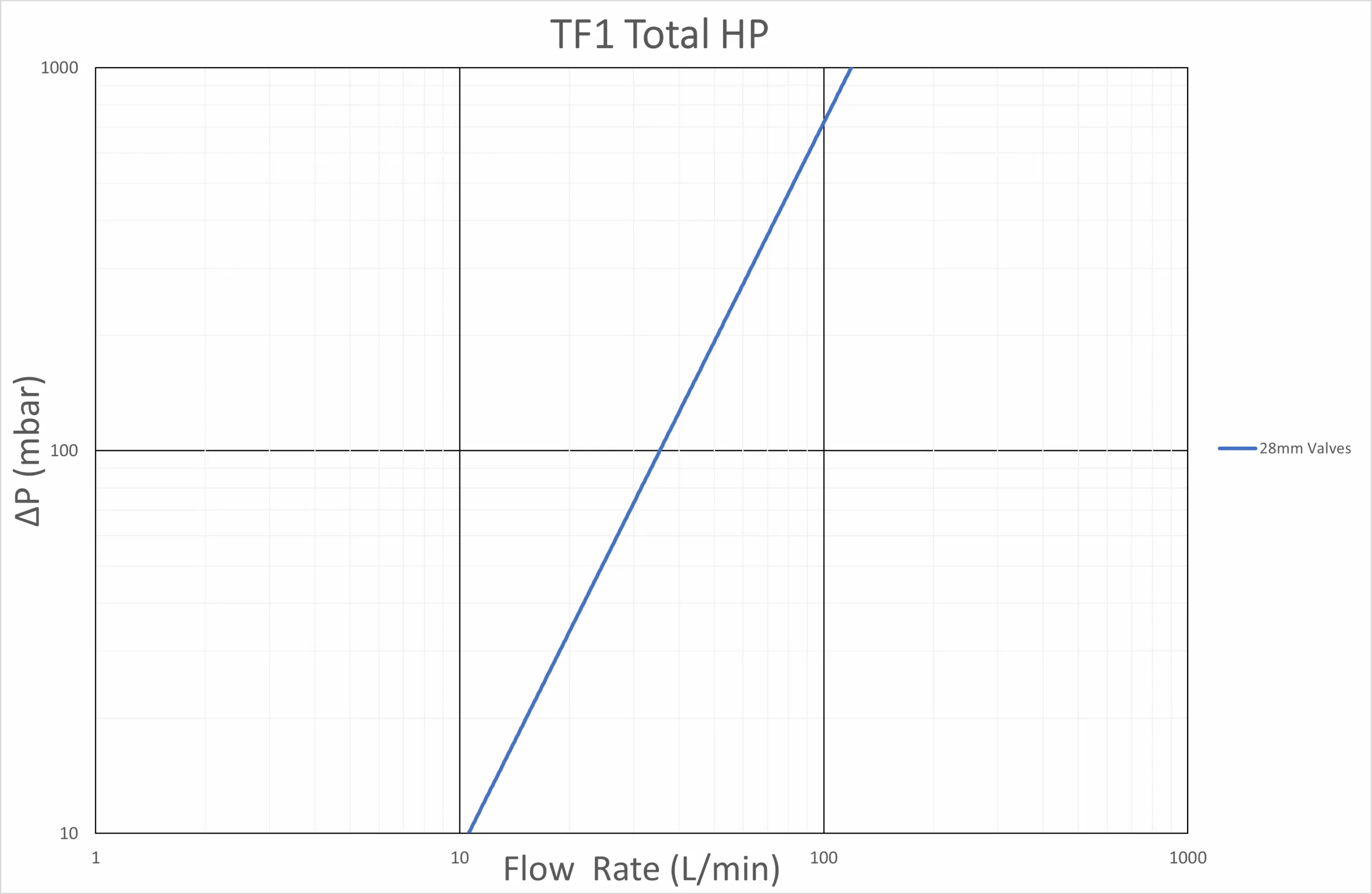

Designed for the demands of Heat Pump systems the TF1 Total HP Filter ensures minimal pressure loss whilst continuing to maintain a high collection efficiency. The internal flow paths, stainless steel mesh, magnet assembly, and area of low flow have all been engineered to allow the filter to capture a range of system contaminates, whilst not impacting the rest of the heating system.
The TF1 Total HP Filter utilises a range of high-quality component parts that ensure the filter offers optimum performance. All full-bore isolation valves are designed to allow users to operate them easily by hand, whilst also providing a secure connection to the system and a robust service point. The magnet is manufactured using a premium grade of neodymium, enabling a high-efficiency capture rate, as well as a robust mesh filtration medium that will ensure a continued and consistent level of collection.
The TF1 Total HP Filter can be connected directly on to the pipework using the brass full-bore valve fittings provided. The TF1 Total HP Filter can be installed in any one of 24 separate orientations enabled by its unique inlet/outlet mechanism.
This advanced in-line filter combines a 400-micron integrated mesh with specially engineered magnetic assemblies to capture both magnetic and non-magnetic contaminants, safely retaining them within the unit for easy removal.
The TF1 Filter can be installed on vertical or horizontal pipework, in accordance with the flow direction indicated by the arrow on the manifold. For optimal performance, it is recommended to install the filter on the return to the heat source, with the ability to be positioned up to 45° from vertical position where space or head height is limited.
Suitable Fluids:
Water
Inhibited Glycol Solutions
Fernox Chemical Range / System Additives
Maximum Percentage of Glycol – 50%
KV – 6.33
Maximum Flow Rate – 50 L/min
Maximum Working Pressure – 3 bar
Maximum Working Temperature – 100⁰C
Capture Rate – Up to 100% of system contaminates
Operating Principle:
Contaminated water enters the filter via the manifold, carrying a range of system debris and particulate matter in suspension. This debris, including ferrous impurities such as magnetite, passes through the manifold and into the main body of the filter.
The TF1 Total HP Filter utilises a combination of mesh and hydrocyclonic filtration. A hydrocyclone is a static device that applies centrifugal force to a liquid mixture to promote the separation of particles.
This process converts the incoming liquid velocity into rotational motion. As water enters the filter, it spins around and down the inner baffle, carrying particles with it. The internal geometry of the filter creates a low-flow zone at the base, where heavier particles are deposited.
The flow paths within the TF1 Total HP Filter have been optimised to maximise the filtration of both magnetic and non-magnetic contaminants.
As the water flows through the internal baffle, magnetite is captured by a powerful neodymium magnet, while the integrated mesh traps non-magnetic particulate matter. The low-flow zone at the bottom of the filter further promotes particle settlement, enhancing overall collection efficiency and allowing clean water to exit the filter.

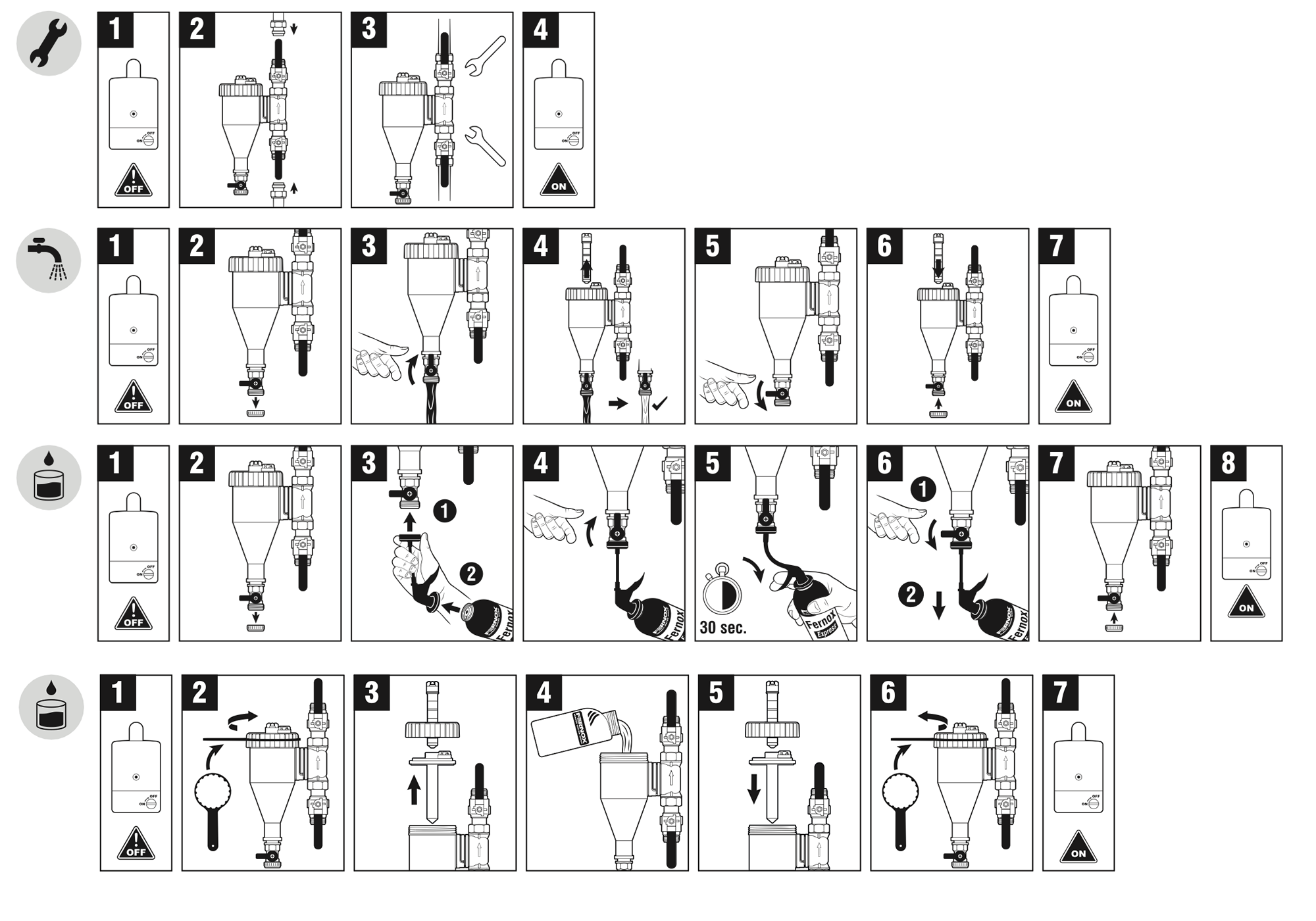

Any debris collected within the filter can be discharged by removing the magnet from its sheath and opening the drain valve. This process is outlined in the cleaning guide and can be carried out without disassembling the filter.
Filter Body – Glass filled, engineering polymer
Manifold – Glass filled, engineering polymer
Drain Valve – Nickel plated brass
Isolation Valves – Nickel plated brass
Circlip – Stainless Steel
Seals & Washers – EPDM
400-micron Mesh – Stainless Steel (other micron sizes are available)
As with all magnetic products, if you have an implanted cardiac device extra caution should always be taken when handling any magnetic filter.
Individually packaged, with instructions included. No special storage requirements.
| Product Code | Fit Type and Size | Single Unit Barcode | Single Unit Dimensions (Height x Width x Depth) | Single Unit Weight (kg) | Outer Carton Barcode (ITF) | Outer Carton Dimensions(Height x Width x Depth) | Outer Carton Box Weight (kg) |
|---|---|---|---|---|---|---|---|
| 62805 | |||||||
| 62804 | |||||||
| 62803 |
