TF1 Omega Installer Pack 22mm Slip Socket

Product Code: 62506
Warranty: 25 Years

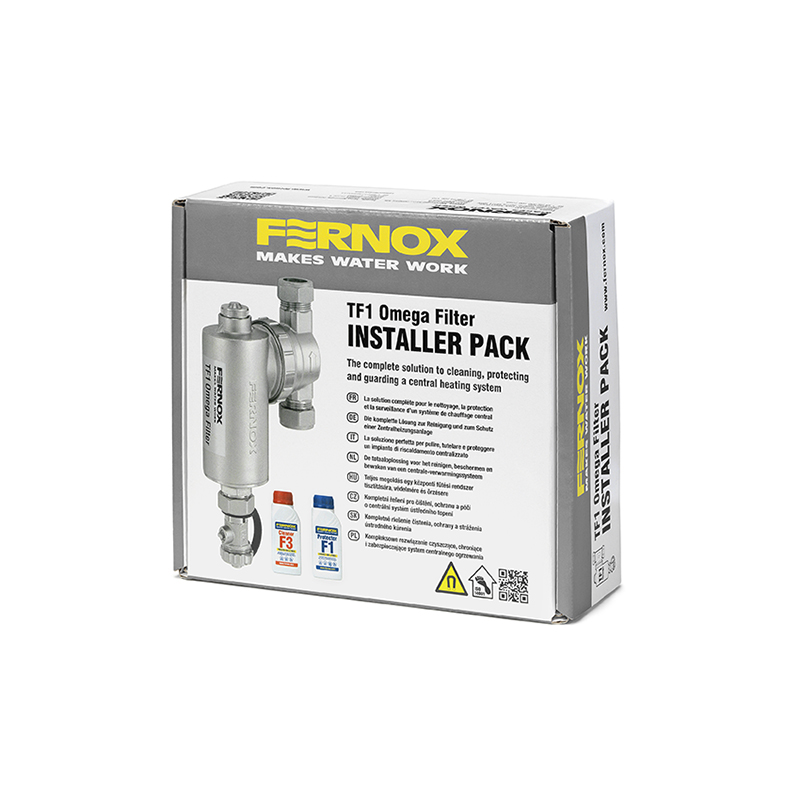

Contains TF1 Omega Filter Slip Socket 22 mm, 1 x Protector F1 265ml, 1 x Cleaner F3 265ml. A complete pack for cleaning, protecting and guarding a central heating system.
The TF1 Omega Filter is a precision-engineered, sealed in-line system filter made from nickel plated brass. This market-leading, high-performance filter is available with quality valves and slip socket connections, which is an industry first. The TF1 Omega Filter offers the ultimate in installer choice and has a market-leading 25 year warranty. Supplied with best-in-class chemical water treatment, Cleaner F3 and Protector F1 to ensure system efficiency and longevity.

  • Contains TF1 Omega Filter Slip Socket 22 mm, 1 x Protector F1 265ml, 1 x Cleaner F3 265ml
  • TF1 Omega Filter is a robust, sealed nickel-plated, brass in-line system filter for greater reliability and ease of servicing
  • Complete pack for cleaning, protecting and guarding a central heating system.
  • Fernox Cleaner F3 is a non- foaming, effective cleaner designed to remove all debris, sludge and scale from new and existing systems
  • Fernox Protector F1 provides long term protection against corrosion and limescale formation.
  • Market- leading 25 year warranty
Product Overview

The TF1 Omega Filter is constructed from a high strength engineering grade brass, suitable for heating and cooling system applications. The brass components are nickel-plated to increase durability and resistance, meaning the filter is compatible with a range of glycols and additives used in central heating systems.

The TF1 Omega Filter has been designed to ensure there is a minimal pressure loss, whilst also maintaining a high collection efficiency. The internal HPS, magnet assembly and area of low flow have all been engineered to allow the filter to capture a range of system contaminates, whilst ensuring this does not impact the rest of the heating system.

The TF1 Omega Filter utilises a range of high-quality component parts that ensure the filter offers the best possible performance. The magnet is manufactured using a premium grade of neodymium, enabling a high-efficiency capture rate, combined with the stainless-steel hydronic particle separator, which enables the continued and consistent filtration of a range of system contaminates.

Application, Fitting & Dosing

Designed to be installed on domestic heating systems on the relevant pipework size. The TF1 Omega Filter can be easily fitted onto either horizontal or vertical pipework in both flow directions. The TF1 Omega Filter is designed to protect the boiler from the damaging effects of circulating corrosion debris, which has collected in the system as a result of a chemical reaction when water comes into contact with mixed metals used within a heating and cooling system. The TF1 Omega Filter should be fitted on the return to the boiler and can be installed at up to 45⁰ from the vertical position.

Fernox Protector F1 gives long-term protection of domestic central heating systems against internal corrosion and limescale formation. It is suitable for all types of boiler, radiators and pipe work systems. Protector F1 is compatible with all metals and materials commonly used in central heating systems. It is suitable for use with all types of water, including softened water and deionised water. The recommended ‘in use’ concentration of Protector F1 265ml is 0.265%. One 265 ml bottle will treat an average domestic system (100 litres). For open vented systems add via the feed and expansion tank. For sealed systems add via a suitable dosing point (e.g. a towel rail or an in-line TF1 system filter). Alternatively, use a suitable dosing vessel to inject the product into the system. In single feed indirect cylinders, e.g.’Primatic’ or similar, potable water chemicals must be used. Fernox recommends untreated or sludged systems are thoroughly cleaned and flushed in accordance with BS 7593:2019 and Benchmark using any product from the Fernox Cleaner range, before treating with Fernox Protector F1, as existing debris can damage the installation and may reduce the lifespan of the boiler and system.

A single dose of Cleaner F3 treats 100 litres, up to 12 radiators, or 190 sqm of underfloor heating. Additional / repeat applications of Cleaner F3 may be necessary for larger systems, or if systems are heavily sludged. Alternatively, Power Cleaner F8 may be used for heavily sludged systems. First drain and refill the entire system with plain water. For optimum results the entire system, including drop feed radiators where fitted, should be completely drainable. Preferably, full bore gate valves with hose connectors should be provided temporarily for this purpose. Motorised and thermostatically controlled valves must be set so that no part of the system is closed off during cleansing, or rinsing. Discharges must be made to the foul drain and not the surface water drain. For open vented systems add Cleaner F3 via the header tank. For sealed systems add via a suitable dosing point, or use Fernox Cleaner F3 Express 400ml. Fernox Cleaner F3 can also be used in conjunction with a powerflushing unit. In this case, please refer to the unit manufacturer’s instructions. When pre-commission cleansing new systems, Fernox Cleaner F3 should be circulated for a minimum of one hour at normal operating temperature. For cleaning existing systems, sludge and debris should be dispersed also within one hour at normal operating temperatures. However, to remove hardened iron oxides and limescale, the cleaning time can be extended to up to one week under the normal heating cycle. If a radiator still has a cold spot after one hour, increase the flow through the radiator by closing the valves on the other radiators. An additional or repeat dose of Cleaner F3 may be necessary in some cases. Drain and flush thoroughly, at least twice, until the water runs clear. When using Cleaner F3 with a powerflushing machine, cleaning should be completed within an hour. Use dynamic flushing with plain water until the water is clear. Refill the system adding Fernox Protector F1 for long term protection against corrosion and limescale. In single feed indirect cylinders, e.g. ‘Primatic’ or similar, potable water chemicals must be used.

Package, Handling & Safety

Fernox Protector F1 is supplied in 265ml bottles.

Fernox Protector F1 is classified as non-hazardous for human health, but as with all chemicals, keep out of reach of children. In case of contact with eyes or skin, rinse immediately with plenty of water.

Fernox Cleaner F3 is supplied in 265ml bottles.

Fernox Cleaner F3 is classified as non-hazardous for human health, but as with all chemicals, keep out of reach of children. In case of contact with eyes or skin, rinse immediately with plenty of water.

As with all magnetic products, if you have an implanted cardiac device extra caution should always be taken when handling any magnetic filter.

Individually packaged with instructions included. No special storage requirements.

Performance

Suitable Fluids
Water
Inhibited Glycol Solutions
Fernox Chemical Range / System Additives

Maximum percentage of Glycol: 50%
Maximum Operating Pressure: 10 bar
Maximum Flow Rate: 50 L/min / 13.2 GPM
Maximum Working Temperature: 100⁰C
Capture Rate: Up to 100% of system contaminates

Operating Principle

Contaminated water enters the filter via the manifold, carrying a variety of system debris and particulate matter held in suspension. This debris, including ferrous impurities such as Magnetite, move through the manifold and into the main body of the filter.

Water is forced down towards the bottom of the filter due to the engineered flow characteristics created within the filter by the Hydronic Particle Separator (HPS). The HPS helps to disrupt any dirt particles held in suspension by the water, as well as direct these particles towards an engineered area of low flow at the base of the filter.

The dynamic flow of the water within the filter also allows ferrous impurities to be captured by the high-powered magnet assembly.

To exit the filter, water must pass over the magnet sheath and around the HPS, then out of the manifold. In this way, system debris has difficulty escaping the unit, and is either trapped in the area of low flow, or captured by the powerful magnet, meaning clean water exits the filter.

Any dirt collected within the filter can then be discharged by removing the magnet from the sheath and opening the drain valve. This procedure is shown in the cleaning guide and does not require system shutdown or for the filter to be disassembled.

Physical Specification / Properties

Filter Body – Forged brass (EN 12165-CW617N-DW), Nickel plated
Manifold – Forged brass (EN 12165-CW617N-DW), Nickel plated
Magnet – Neodymium
Hydronic Particle Separator – Stainless Steel
Circlip – Stainless Steel
Drain Valve – Nickel plated brass
Seals & Washers – EPDM

Colour: Amber
Odour: Faintly aromatic
Form: Liquid
pH (conc): 6.7
pH (in-use) 6.5 – 7.7
SG: 1.195 @ 20°C

Protector F1 is a blend of inorganic and organic corrosion and scale inhibitors.
Form: Liquid
Odour: Aromatic (slight)
Colour: Yellow
pH(conc.): 8.1
pH(soln.): 7.0 to 8.0
SG: 1.18 at 20°C

Volumetrics
Filters Sort results
Reset Apply
Product Code
Single Unit Dimensions
Single Unit Barcode
Outer Carton Dimensions
Outer Carton Barcode (ITF)
62506
210 × 240 × 75 mm
5014551625068
320 x 250 x 225 mm
05014551002197

No, the TF1 Omega Filter has been designed to ensure that even when it reaches a level of maximum collection, system water can still pass through the filter, short-circuiting the body, and flowing freely through the manifold.

The TF1 Omega Filter is a high performance, nickel plated, in-line system filter, which is designed for domestic heating systems.

It is produced with quality materials and components and has been manufactured using precision engineering. Combining the strength of a powerful Neodymium magnet with Hydronic Particle Separation technology, the TF1 Omega Filter offers a superior collection capacity for both magnetic and non-magnetic debris.

The TF1 Omega Filter out performs other filters of its size by collecting significant quantities of system contaminants, and competes with many larger filters thanks to the cleverly designed internal mechanisms of the filter.

The HPS technology improves the overall collection of the filter, as well as the performance of the Neodymium magnet.

The TF1 Omega Filter
How do you install a Fernox TF1 Omega Filter?
How do you clean a Fernox TF1 Omega Filter?
How does a Fernox TF1 Omega Filter Work?
How to dose with Fernox Express via TF1 Omega Filter
How to clean a TF1 Omega Filter – in less than a minute!
