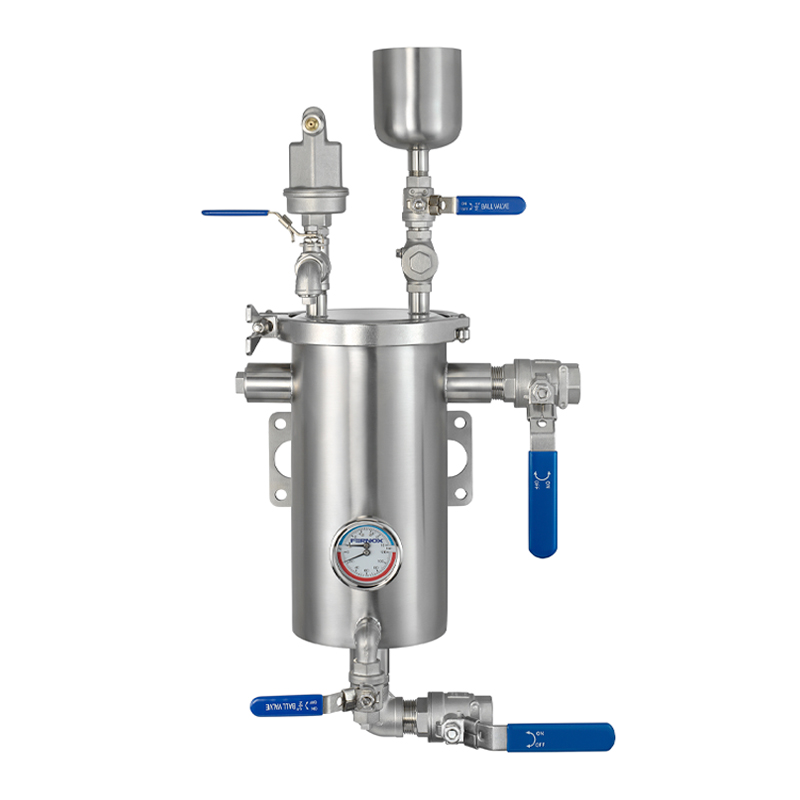

The Fernox CC1 Side Stream Filter Air & Dirt 90 is a high-performance side stream filtration, air removal, and chemical dosing unit designed for commercial and industrial closed-loop HVAC systems up to 90,000 litres.
It provides magnetic filtration, antimicrobial fine filtration down to 0.5 micron, automatic air venting, and an integrated 5.5L dosing pot, all within a robust stainless steel vessel.
The CC1 Side Stream Filter continuously removes magnetic and non-magnetic debris, microbubbles, dirt, and bacterial contamination, helping extend the lifespan and improve the efficiency of boilers, chillers, heat exchangers, and pumps.
The Fernox CC1 Side Stream Filter Air & Dirt 90 is an all-in-one solution engineered to deliver superior water quality management in commercial HVAC systems. It integrates magnetic separation, fine particulate filtration, air elimination and chemical dosing into a single compact, wall-mounted unit.
Using a combination of high-strength neodymium magnets and an antimicrobial nylon cartridge (down to 0.5 micron), the CC1 Side Stream unit removes sludge, corrosion debris, suspended solids, biofouling, and entrained air.
Its 316 stainless steel vessel is polished internally to prevent bacterial colonisation and ensure easy cleaning.
The unit complies fully with BSRIA BG29 and BG50 for commissioning, ongoing maintenance, inhibitor treatment, solids removal, pre-treatment, air removal, dynamic flushing, and online cleaning.
With no need to isolate or shut the system down for servicing, the CC1 is ideal for critical environments where uptime is essential.
The Fernox CC1 Side Stream Filter Air & Dirt is suitable for:
– Commercial & industrial heating systems
– Chilled water & cooling circuits
– Systems requiring continuous debris removal, inhibitor dosing and air removal
– Plant rooms where reliability and ease of maintenance are critical
– HVAC systems up to 90,000 litres total water volume
Connection interface:
Dirty Flow Inlet: 1” BSP Female
Clean Return Outlet: 1” BSP Male
System Fill: ½” BSP
Drain: ½” BSP
Typical applications include hospitals, universities, schools, data centres, commercial buildings, and district heating systems.
• Maximum System Working Pressure: 10 bar
• Working Temperature Range: 0 – 110°C
• Flow Rate Through Vessel: 0.08 – 1.04 L/s (4.8–60 L/min)
• Filtration Efficiency: Down to 0.5 micron
• System Capacity: Up to 90,000 litres
• Dosing Pot Capacity: 5.5 litres
• Air Removal: Automatic air vent, 10 bar / 110°C rating
Compliance:
BSRIA BG29
BSRIA BG50
PED SEP (2014/68/EU)
Operating Principle
As system water enters the Fernox CC1:
1. Magnetic Separation
Four 8,500 Gauss neodymium magnet bars (encased in stainless steel) are fully submerged in the flow path to capture ferrous material such as magnetite.
2. Antimicrobial Cartridge Filtration
A spun-bonded nylon cartridge removes non-magnetic solids down to 0.5 micron. The cartridge includes silver-ion antimicrobial technology, which disrupts bacterial respiration and neutralises microorganisms on contact.
3. Air Removal
The stainless steel automatic air vent releases microbubbles and trapped air, helping reduce noise and strain on system components.
4. Chemical Dosing
The 5.5L dosing pot allows inhibitors and treatment chemicals to be introduced quickly and safely without shutting down the system.
5. Drain & Maintenance
A dedicated drain connection ensures quick vessel emptying, enabling rapid filter replacement. The unit’s design prevents system blockage even if filters are not serviced regularly.
Vessel Body: 316 Stainless Steel
Magnets: 4 × Neodymium Rare Earth (8,500 Gauss), fully submerged
Cartridge Filter Material: Antimicrobial nylon, spun-bonded
Micron ratings available: 0.5, 5, 20 and 50 micron
Automatic Air Vent: 316 SS / 110°C max temperature / 10 bar max working pressure
Connections:
1” BSP dirty flow (female)
1” BSP clean return (male)
½” BSP fill & drain connections
Temperature/Pressure Gauge: 0–10 bar / 0–120°C
Internal Surface: Polished stainless steel
Isolation Valves: 316 SS full-bore, flat face
Magnet Grate: 316 SS
Mounting: Wall-mounted via backing plate (4 × M12 holes)
Insulation: Fitted thermal jacket
Each Fernox CC1 unit is supplied with:
• 50 micron antimicrobial cartridge filter
• Four neodymium magnet bars
• Automatic air vent
• Full bore stainless steel isolation valves
• Pressure & temperature gauge
• Backing plate for installation
• Dedicated drain and fill fittings
• Thermal Cover
• Instruction Manual
Handling & Safety Notes:
Install and maintain only by qualified personnel
Ensure vessel is depressurised before filter removal
Not suitable for flammable or hazardous fluids
Recommended service interval: every 3–6 months, depending on contamination
Do not exceed specified pressure or temperature limits
