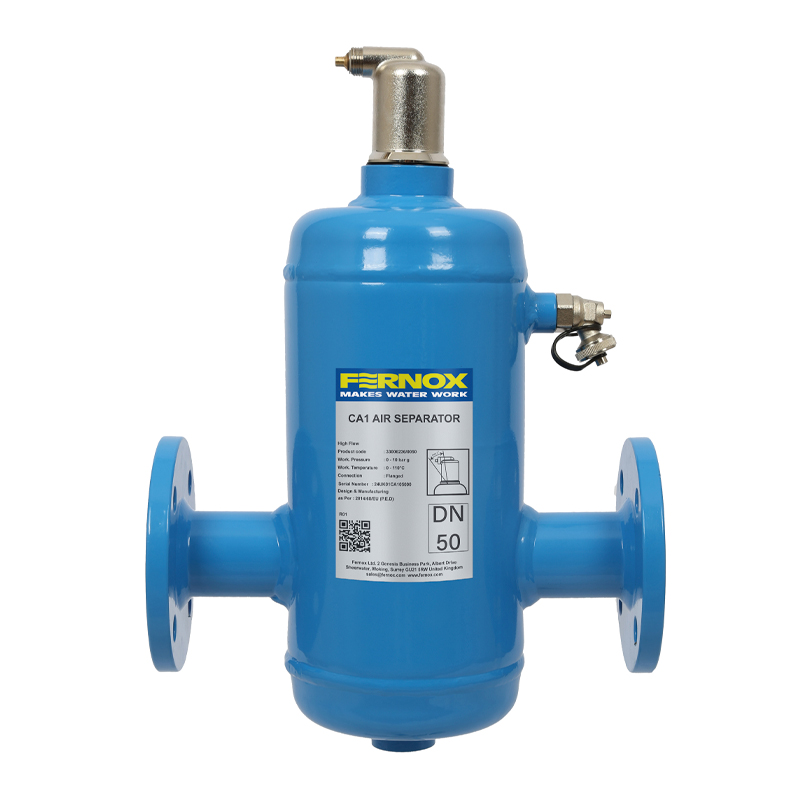

The Fernox CA1 Air Separator is a high-efficiency deaerator designed to continuously remove air and microbubbles from closed-loop commercial heating and cooling systems. Available in Standard Flow and High Flow versions, the CA1 helps prevent corrosion, reduce noise, and maintain stable system performance. Its low pressure drop design supports energy efficiency and balanced flow, making it ideal for commercial applications.
| Product Code | Variation Details | Product Data Sheet (PDF) |
|---|---|---|
| 33006236/0065 | ||
| 33006236/0100 | ||
| 33006236/0125 | ||
| 33006236/0080 | ||
| 33006236/0150 | ||
| 33006236/0050 | Flow Rate m/s: 1.5 m/s (standard-flow), DN Size: 50 |
The Fernox CA1 Air Separator continuously removes dissolved gases and entrained air from sealed commercial HVAC systems. Entrained gases are a major cause of corrosion, noise, and reduced thermal efficiency. By removing air from the circulating fluid, the CA1 Air Separator ensures more stable operation and protects critical system components. Its low pressure drop internal design supports energy efficiency and flow stability, helping to reduce pump load and optimise overall system performance.
Built with a corrosion-resistant carbon steel body, the separator is equipped with an integrated automatic air vent and is available in both Standard and High Flow variants to suit different system requirements. The flanged connections make it suitable for commercial applications such as plant rooms, hospitals, schools, and office buildings. Compliant with PED 2014/68/EU.
Designed for commercial and industrial closed-loop heating and chilled water systems, the Fernox CA1 Air Separator is typically installed on the main flow or return line, preferably at high turbulence points to maximise air separation.
Maximum Operating Pressure: 10 bar
Test Pressure: >15 bar
Max. Static head: 15m (Heating), 5m (Cooling)
Operating Temperature Range: 0 – 110°C
Installation Orientation: Horizontal pipework
Connection Type: Flanged (DN50 to DN150)
Suitable Fluids:
• Water
• Glycol-water mixtures (up to 50%)
Operating Principle
System water enters the CA1 and passes through an internal geometry that reduces flow velocity and encourages the release of entrained air. Microbubbles coagulate and rise to the upper chamber and are expelled via the integrated automatic air vent. This continuous process helps reduce internal corrosion, noise, and circulation problems, without requiring maintenance or system shutdown.
Flow Capacities:
• Standard Flow: up to 1.5 m/s
• High Flow: up to 3.0 m/s
• Body Material: Carbon steel
• Finish: Corrosion-resistant industrial coating
• Flanged Connections: DN50–DN150, EN 1092-1 / PN16
• Air Vent Connection: 1/2” BSP
• Installation Orientation: Horizontal pipework
Each CA1 unit is supplied fully assembled and hydrostatically tested at >15 bar. The unit includes a factory-installed automatic air vent and lifting lugs for larger sizes. No special storage conditions are required. Installation must be carried out by qualified personnel in accordance with system specifications and safety guidelines.
