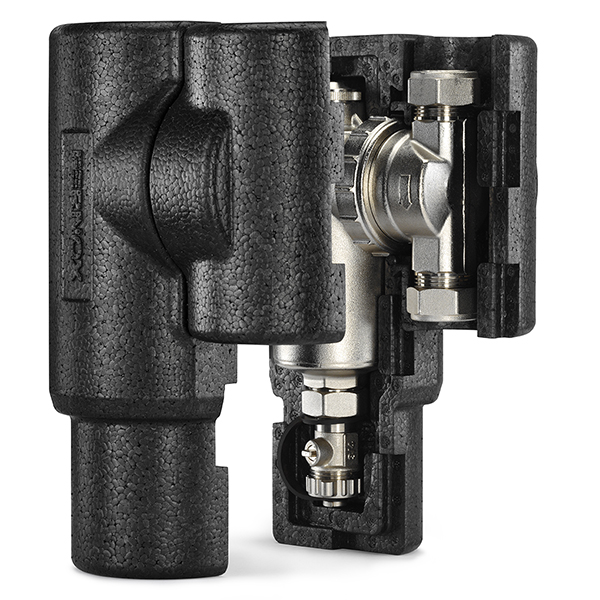

TF1 Omega Filter Thermal Cover

Manufactured from Expanded Polypropylene (EPP) the Fernox TF1 Omega Filter Thermal Cover is used to insulate inline system filters installed on central heating systems to minimise system heat loss and maximise energy efficiency

A strong and durable enclosure
Reduced heat loss
Greater heating system efficiency
Protection from internal components and hot surfaces
100% contaminant-free and recyclable

No results found. Clear filters and try again?

Application, Fitting & Dosing

The customised EPP thermal covers supplied by Fernox are designed to last the life of the TF1 Omega Filter. They will insulate and protect the system filter year–after-year without losing their integrity or performance.

Designed to insulate the TF1 Omega Filter to retain heat levels, reduce energy consumption and energy costs

Package, Handling & Safety

Individually packaged. No special storage requirements.

Performance

Material: EPP (expanded polypropylene)
Colour: Anthracite Grey
Building Material Class: B2 according to DIN 4102, E according to EN13501-1
Density: 45 – 55 kg/m3
Thermal Conductivity: 0.035 W/mk (10C)
Application Temperature: up to 100C

Physical Specification / Properties

High quality, flame retardant protective cover
Improves energy efficiency
Promotes safer handing

Volumetrics

Filters Sort results
Reset Apply

Product Code
Type
Size
Single Unit Dimensions(Height x Width x Depth)
Single Unit Barcode
Outer Carton Dimensions(Height x Width x Depth)
Outer Carton Barcode (ITF)

58264

Compression

15mm

40 × 185 × 40 mm

5014551582644

90 x 221 x 200 mm

05014551000018

59256

With Valves

22mm

112 × 346 × 179 mm

5014551592568

240 x 368 x 354 mm

05014551000148

59257

With Valves

28mm

112 × 346 × 179 mm

5014551592575

240 x 368 x 354 mm

05014551000155

62248

Slip Socket

22mm

70 × 190 × 132 mm

5014551622487

160 x 270 x 200 mm

05014551622562

TF1 Omega Filter Thermal Cover

Application, Fitting & Dosing

Package, Handling & Safety

Performance

Physical Specification / Properties

Volumetrics
