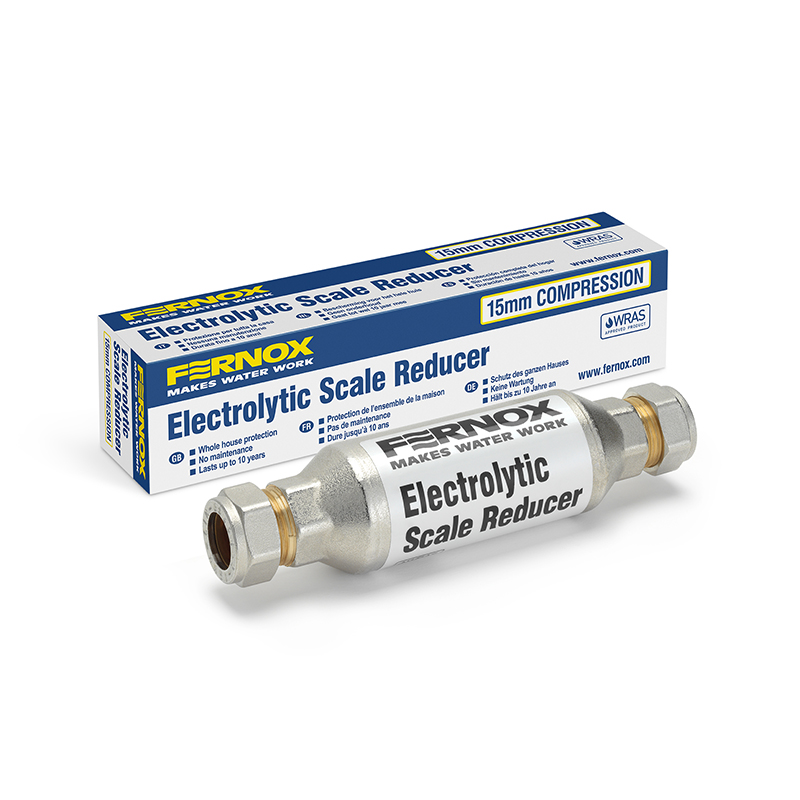

Electrolytic Scale Reducer

Product Code: 58263, 62303, 62304 Category:
Warranty: 1 Years

The Fernox Electrolytic Scale Reducer range uses electrolytic principles to prevent the build-up of scale throughout the home, and remains effective for up to 10 years, dependent on water usage. It works by altering the structure of the hardness salts, inducing coagulation and providing benefits to a range of appliances from kettles to showers and boilers offering whole house protection against scale. Part L of the Building Regulations (England and Wales) states that in hard water areas which exceed 200ppm, provision should be made to treat feed water to water heaters and hot water circuits of combination boilers to reduce the rate of limescale formation as well as limiting its harmful effects on energy efficiency

Filters Sort
Product Code
Type
Size
Product Data Sheet
58263
Compression
15mm
62303
Pushfit
15mm
62304
Compression
22mm
  • An in-line scale reducer to prevent the build-up of scale using electrolytic principles
  • Whole house protection
  • A brass, nickel plated unit
  • No maintenance
  • Lasts for up to 10 years
  • WRAS approved product
  • The Fernox Electrolytic Scale Reducer is connected directly to the pipework using pushfit fittings. In an average domestic usage household the Fernox Electrolytic Scale Reducer will provide whole house protection for approximately ten years dependent on water usage levels. The unit is effective immediately and is guaranteed for 12 months against manufacturing defects. The unit is pressure rated to 10 bar at 20˚C with an operating temperature of 2˚C to 40˚C (cold feed) and is designed for 15mm pipework. Install in compliance with WRAS installation requirements IRN R001, R120, R150, R170, R290 and/or local water regulations.

    The Fernox Electrolytic Scale Reducer can be installed in horizontal or vertical pipework. The unit is classified as non-hazardous.

    The Fernox Electrolytic Scale Reducer is not a water softener but it induces coagulation whilst the water hardness remains unchanged. It works in the same way as a small battery where the brass body (cathode) and internal zinc (anode) are connected via mains water (electrolyte) to alter the structure of the hardness salts. The effect is to enable the hardness salts to cluster together rather than attach to the heat exchanger and pipework in a central heating system. Limescale deposits are more common where heat is generated and can have lasting damaging effects on the efficiency and life of the boiler. The Fernox Electrolytic Scale Reducer also benefits a range of other domestic appliances including kettles, taps, showers and boilers. Any scale that does form will be less tenacious and easier to remove.
    Part L of the Building Regulations (England and Wales) states that in hard water areas which exceed 200 ppm, provision should be made to treat feed water to water heaters and hot water circuits of combination boilers to reduce the rate of limescale formation as well as limiting its harmful effects on energy efficiency. One way to comply with this legislation is to install a Fernox Electrolytic Scale Reducer.

    There are no videos for this product.

    Take a look at some of our other videos by clicking here or get in touch with us.

    There are no FAQs for this product.

    Take a look at some of our other FAQs by clicking here or get in touch with us.

    There are no downloads for this product.

    Take a look at some of our other downloads by clicking here or get in touch with us.

    Different sizes and variations of a product can have different dimensions and instructions.

    Please download the required product data sheet for your product.

    Filters Sort
    Product Code
    Type
    Size
    Product Data Sheet
    58263
    Compression
    15mm
    62303
    Pushfit
    15mm
    62304
    Compression
    22mm

    Filters Sort
    Product Code
    Type
    Size
    Single Unit Dimensions
    Single Unit Barcode
    Outer Carton Dimensions
    Outer Carton Barcode (ITF)
    58263
    Compression
    15mm
    39 × 212 × 40 mm
    5014551582637
    230 x 221 x 92 mm
    05014551000001
    62303
    Pushfit
    15mm
    39 × 212 × 40 mm
    5014551623033
    230 x 221 x 92 mm
    05014551001404
    62304
    Compression
    22mm
    39 × 212 × 40 mm
    5014551623040
    230 x 221 x 92 mm
    05014551001411
